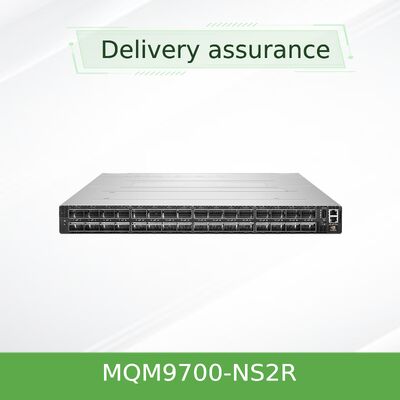

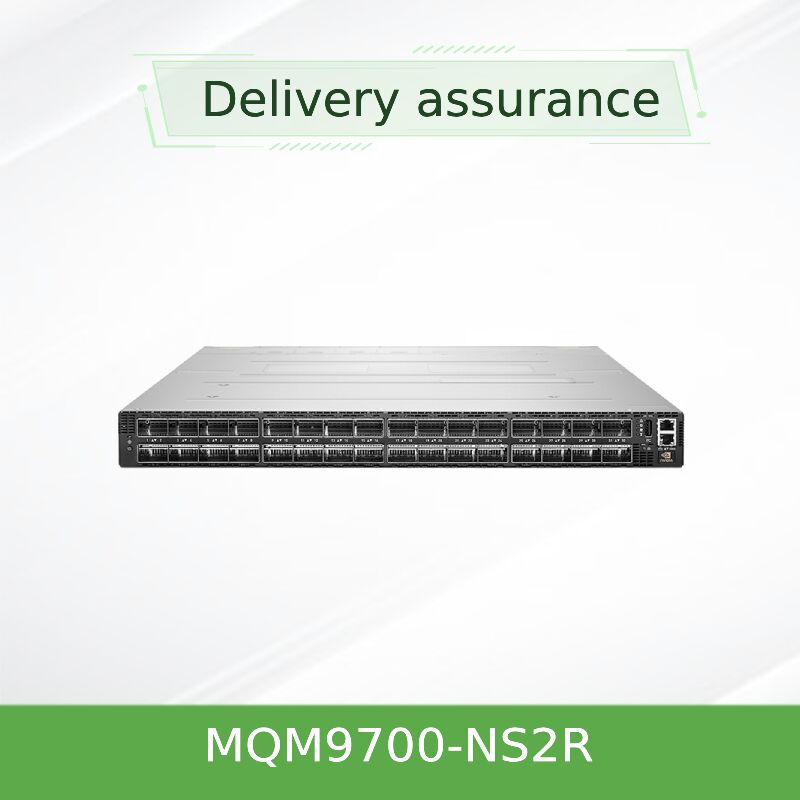

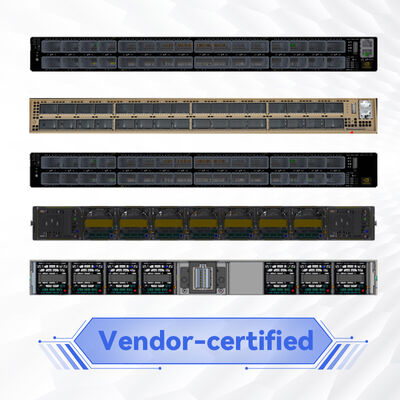

NVIDIA Quantum-2 QM9700-NS2R 64-Port 400G InfiniBand Managed Switch
Thông tin chi tiết sản phẩm:
| Hàng hiệu: | Mellanox |
| Số mô hình: | MQM9700-NS2R (920-9B210-00RN-0M2) |
| Tài liệu: | MQM9700 series.pdf |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 cái |
|---|---|
| Giá bán: | Negotiate |
| chi tiết đóng gói: | hộp bên ngoài |
| Thời gian giao hàng: | Dựa trên hàng tồn kho |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | Cung cấp theo dự án/đợt |
|
Thông tin chi tiết |
|||
| Mẫu số: | MQM9700-NS2R (920-9B210-00RN-0M2) | tốc độ truyền tải: | 400G |
|---|---|---|---|
| Cổng: | 64 | Công nghệ: | Infiniband |
| Tốc độ tối đa: | NDR | Gói vận chuyển: | đóng gói |
| Làm nổi bật: | NVIDIA Quantum-2 400G InfiniBand switch,64-port InfiniBand managed switch,Mellanox Quantum-2 network switch |
||
Mô tả sản phẩm
Industry-leading NDR 400Gb/s per port | 51.2 Tb/s aggregate throughput | SHARPv3 in-network computing | Ultra-low latency for AI & HPC fabrics
The NVIDIA Quantum-2 QM9700-NS2R is a fully managed 1U InfiniBand switch delivering an unprecedented 64 ports of 400Gb/s (NDR) non-blocking bandwidth. Designed for extreme-scale AI, scientific research, and high-performance computing (HPC) clusters, it enables massive scalability with 51.2 Tb/s aggregate bidirectional throughput and over 66.5 billion packets per second. Leveraging SHARPv3, adaptive routing, and RDMA, the QM9700-NS2R accelerates data movement and in-network computing for the most demanding workloads.
- Switch Radix: 64 non-blocking 400G ports (32 OSFP connectors)
- Throughput: 51.2 Tb/s aggregate bidirectional
- Packet Rate: >66.5 billion packets per second (BPPS)
- SHARPv3: 32x AI acceleration improvement vs prior generation
- Airflow: Connector-to-power (C2P) reverse airflow, ideal for hot-aisle containment
- Management: On-board subnet manager for up to 2,000 nodes, MLNX-OS, CLI, WebUI, SNMP, JSON API
- Power & Cooling: 1+1 redundant hot-swap PSU, hot-swappable fan units, front-to-rear or rear-to-front option (C2P configured)
Built on the NVIDIA Quantum-2 platform, the QM9700 series redefines data center switching density and efficiency. The QM9700-NS2R (managed, C2P airflow) integrates 64 ports of 400Gb/s InfiniBand in a compact 1U chassis. It supports port-split technology to deliver up to 128 ports of 200Gb/s, offering flexible topologies like Fat Tree, DragonFly+, SlimFly, and multi-dimensional Torus. Backward compatibility with previous InfiniBand generations ensures smooth integration into existing infrastructure. With advanced telemetry, congestion control, and self-healing network capabilities, this switch maximizes application throughput while simplifying operations.
32 OSFP cages supporting 400G NDR or 128x200G via splitter cables, delivering the densest top-of-rack InfiniBand switch in 1U form factor.

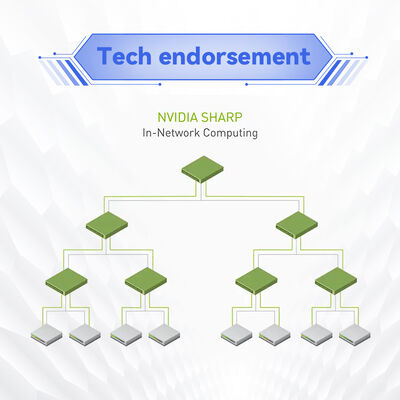

Third-generation NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol accelerates AI collective operations by up to 32X, reducing data movement and latency.
Remote Direct Memory Access (RDMA) and adaptive routing eliminate bottlenecks, while enhanced virtual lane mapping and congestion control maintain consistent performance.
Automatic failover, link-level retransmission, and advanced monitoring capabilities ensure non-disruptive operations for mission-critical workloads.
On-board subnet manager supports up to 2000 nodes out-of-the-box; full chassis management via CLI, WebUI, SNMP, and JSON/REST API.
Optimized for scalable, cost-effective cluster designs; double-density radix reduces network layers and lowers total cost of ownership.
The Quantum-2 platform integrates NVIDIA’s latest 400G SerDes technology, delivering 51.2 Tb/s of switching capacity. Key innovations include SHARPv3 in-network computing, which offloads collective operations from compute nodes, drastically improving AI training efficiency. The switch leverages Remote Direct Memory Access (RDMA) to bypass kernel overhead, achieving microsecond-scale latency. Adaptive routing dynamically distributes traffic across multiple paths to avoid hotspots, while enhanced quality of service (QoS) and virtual lane (VL) mapping guarantee bandwidth for critical applications. The QM9700-NS2R also incorporates advanced telemetry for real-time fabric monitoring and self-healing capabilities that automatically re-route traffic around link failures.
- AI & Machine Learning Clusters: High-radix NDR switches enable massive GPU supercomputing pods with SHARPv3 accelerating NCCL collectives.
- HPC Research Centers: SlimFly or Fat Tree topologies connect thousands of nodes with ultra-low latency for weather simulation, genomics, and physics.
- Enterprise Data Centers: Consolidate East-West traffic with 400G spine-and-leaf architecture, reducing tier count and operational costs.
- Cloud & Hyperscale: DragonFly+ and multi-dimensional torus for maximum scalability with high bandwidth density per rack unit.
- Storage & IO Expansion: Connect high-performance storage systems using NVMe over Fabrics (NVMe-oF) via InfiniBand.

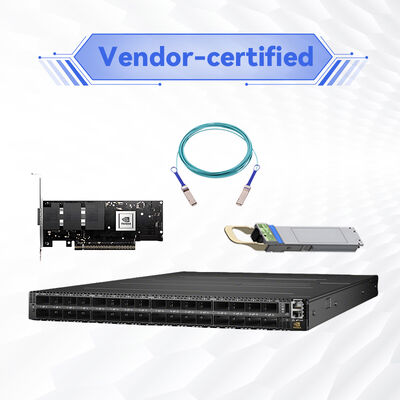

The QM9700-NS2R is fully interoperable with NVIDIA InfiniBand adapters (ConnectX-6, ConnectX-7, ConnectX-8), cables (active/passive copper, active fiber, optical modules), and previous FDR/EDR/HDR generations. It runs MLNX-OS with extensive API support for automation frameworks. Compatible with NVIDIA Unified Fabric Manager (UFM) for advanced monitoring, predictive analytics, and telemetry. The switch integrates seamlessly with major HPC schedulers and open network automation tools.
| Component | Supported Models/Standards |
|---|---|
| Host Channel Adapters | NVIDIA ConnectX-6 / ConnectX-7 / ConnectX-8 InfiniBand, NDR 400G HCAs |
| Cables & Transceivers | OSFP passive copper (up to 2.5m), active copper, active fiber (up to 500m), optical modules (QSFP-DD to OSFP adapters for 200G split) |
| Previous InfiniBand Speeds | HDR (200Gb/s), EDR (100Gb/s), FDR (56Gb/s) – backward compatible |
| Management & Automation | MLNX-OS, UFM, Prometheus/Grafana via SNMP, JSON-RPC, Ansible modules |
| Parameter | Specification |
|---|---|
| Ports & Speed | 64 non-blocking ports of 400Gb/s (NDR) InfiniBand; 32 OSFP connectors; supports 128 ports @200Gb/s via splitter cables |
| Switching Capacity | 51.2 Tb/s aggregate bidirectional throughput; >66.5 billion packets per second (BPPS) |
| Latency | Sub-130ns port-to-port with dynamic routing (typical) |
| Processor & Memory | x86 Coffee Lake i3, 8GB DDR4 SO-DIMM (2666 MT/s), 16GB M.2 SSD |
| Management Interfaces | 1x USB 3.0, 1x USB (I2C), 1x RJ45 (Ethernet), 1x RJ45 (UART) |
| Power Supply | 1+1 redundant, hot-swappable, 200–240Vac, 80 PLUS Gold+ certified |
| Cooling & Airflow | Connector-to-power (C2P) reverse airflow (NS2R model); hot-swappable fan units, front/rear options |
| Dimensions (HxWxD) | 1.7 in (43.6 mm) x 17.0 in (438 mm) x 26.0 in (660.4 mm) |
| Weight | 14.5 kg (31.97 lbs) |
| Operating Conditions | Temperature: 0°C to 40°C; Humidity: 10% to 85% non-condensing; Altitude up to 3050m |
| Regulatory & Safety | RoHS, CE, FCC, VCCI, cTUVus, CB, RCM, ENERGY STAR |
| Warranty | 1-year manufacturer warranty (extendable) |
| Orderable Part Number | Description | Management | Airflow Direction |
|---|---|---|---|
| MQM9700-NS2R | 64 ports 400Gb/s InfiniBand, managed switch, 32 OSFP ports | Full on-board subnet manager, MLNX-OS | Connector-to-Power (C2P) – reverse airflow |
| MQM9700-NS2F | 64 ports 400Gb/s InfiniBand, managed switch | Managed (same features) | Power-to-Connector (P2C) – forward airflow |
| MQM9790-NS2R | 64 ports 400Gb/s, unmanaged switch | Unmanaged, external UFM management | C2P reverse airflow |
| MQM9790-NS2F | 64 ports 400Gb/s, unmanaged switch | Unmanaged | P2C forward airflow |
The QM9700-NS2R is ideal for customers requiring advanced on-box management (subnet manager) and connector-to-power airflow (exhaust to cold aisle). Confirm airflow compatibility with your data center thermal design before ordering.
Warehouses and fulfillment partners enable rapid worldwide shipping with secure packaging.
Our in-house engineers help validate network topologies, cabling plans, and firmware requirements.
Authorized partner pricing with extended warranty options and advanced replacement programs.
Dedicated support in English, Mandarin, Cantonese and regional languages for seamless procurement.
Starsurge provides end-to-end lifecycle support: from design consultation to deployment and post-sales maintenance. Our services include on-site installation guidance, RMA processing, firmware upgrade assistance, and customized cabling solutions. For high-volume projects, we offer dedicated account management and 24/7 technical escalation. The QM9700-NS2R ships with 1-year hardware warranty; extended support packages are available upon request.
The only difference is the airflow direction: NS2R uses connector-to-power (C2P) reverse airflow, while NS2F uses power-to-connector (P2C) forward airflow. Choose according to your rack thermal design (hot aisle/cold aisle).
Yes, the QM9700 supports backward compatibility using appropriate adapter cables or breakout options for HDR (200G), EDR (100G), and FDR (56G) speeds. Please consult the compatibility matrix or contact Starsurge for validated cable SKUs.
No, the QM9700-NS2R features an integrated on-board subnet manager capable of managing up to 2000 nodes, simplifying small to medium deployments. For larger fabrics, external SM or UFM can be used.
Yes, the InfiniBand fabric is agnostic to server vendor. Any server with a supported InfiniBand HCA (e.g., ConnectX series) can connect seamlessly.
Typical power varies with port configuration and cabling. The PSUs are 1+1 redundant 200-240Vac, Gold+ rated. Contact us for detailed power planning.

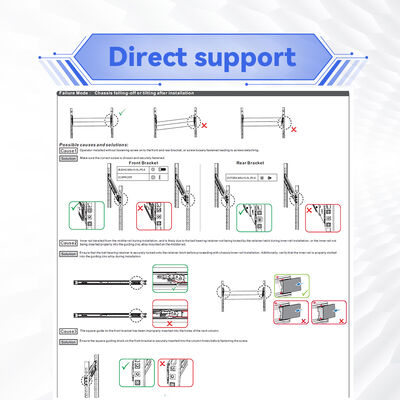

- Ensure airflow direction (C2P for NS2R) matches your rack ventilation strategy to prevent overheating.
- Use only approved NVIDIA OSFP modules or qualified passive/active copper/fiber cables for 400G performance.
- Installation should follow ESD precautions and be performed by qualified network personnel.
- Firmware updates must be executed using MLNX-OS guidelines to avoid interruption; schedule maintenance windows accordingly.
Founded in 2008, Starsurge is a technology-driven provider of network hardware, IT services, and system integration solutions. We serve government, healthcare, manufacturing, education, finance, and enterprise sectors worldwide. With an experienced sales and technical team, we deliver reliable networking equipment including switches, NICs, wireless controllers, cables, and IoT solutions. Our customer-first approach ensures scalable, efficient, and future-ready infrastructure. Multilingual support and global delivery capabilities make Starsurge your trusted partner for NVIDIA and data center solutions.
- ☑ Confirm airflow direction (C2P) fits your data center layout
- ☑ Verify power input: 200–240V AC with redundant feeds
- ☑ Select appropriate OSFP cables/transceivers: active/passive copper or fiber, based on distance
- ☑ Plan network topology (Fat Tree, DragonFly+, etc.) and scaling nodes
- ☑ Ensure host adapters are NDR-capable (ConnectX-7 or newer for 400G)
- ☑ Allocate management IP and review MLNX-OS licensing (no extra license for core switching)

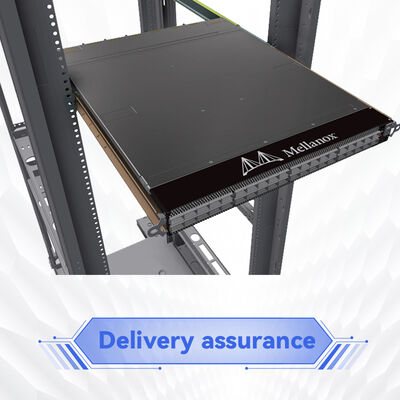

- ☑ Prepare rack space: 1U height, depth up to 660mm including cable management
