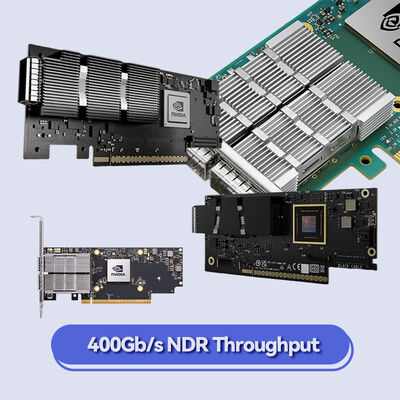

NVIDIA ConnectX-7 MCX755106AS-HEAT 400Gb/s Dual-Port InfiniBand & Ethernet Smart NIC with PCIe Gen5
Thông tin chi tiết sản phẩm:
| Hàng hiệu: | Mellanox |
| Số mô hình: | MCX755106AS-HEAT (900-9x7AH-0078-DTZ) |
| Tài liệu: | Connectx-7 infiniband.pdf |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 cái |
|---|---|
| Giá bán: | Negotiate |
| chi tiết đóng gói: | hộp bên ngoài |
| Thời gian giao hàng: | Dựa trên hàng tồn kho |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | Cung cấp theo dự án/đợt |
|
Thông tin chi tiết |
|||
| Mẫu số: | MCX755106AS-HEAT (900-9x7AH-0078-DTZ) | Cổng: | 2 cổng |
|---|---|---|---|
| Công nghệ: | Infiniband | Loại giao diện: | OSFP56 |
| Đặc điểm kỹ thuật: | 16,7cm x 6,9cm | Nguồn gốc: | Ấn Độ / Israel / Trung Quốc |
| tốc độ truyền tải: | 200gbe | Giao diện máy chủ: | Gen3 X16 |
| Làm nổi bật: | NVIDIA ConnectX-7 400Gb/s Smart NIC,Dual-Port InfiniBand Ethernet NIC,PCIe Gen5 Network Card with warranty |
||
Mô tả sản phẩm

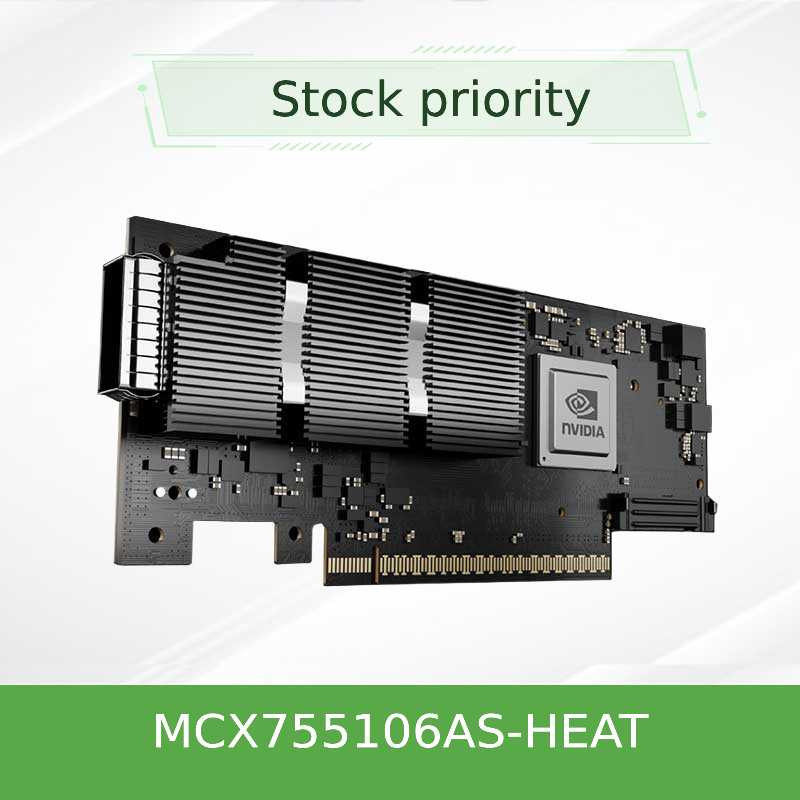

NVIDIA ConnectX-7 MCX755106AS-HEAT 400Gb/s Dual-Port InfiniBand & Ethernet Smart NIC
The industry-leading 400Gb/s RDMA adapter for AI, scientific computing, and hyperscale cloud data centers.
NVIDIA ConnectX-7 MCX755106AS-HEAT is a dual-port, 400Gb/s network adapter supporting both InfiniBand (NDR/HDR/EDR) and Ethernet (400/200/100/50/25/10GbE) protocols. Featuring PCIe Gen5 x32 host interface, GPUDirect RDMA and Storage, in-line encryption (IPsec, MACsec, TLS), SHARP in-network computing, and advanced timing (PTP Class C, SyncE), it delivers ultra-low latency and extreme throughput for the world's most demanding workloads.
Product Overview
The NVIDIA ConnectX-7 MCX755106AS-HEAT is a dual-port, 400Gb/s RDMA network adapter that supports both InfiniBand and Ethernet protocols. It is designed to address the full spectrum of networking needs—from traditional enterprise IT infrastructure to the most demanding AI, scientific computing, and hyperscale cloud data center environments.
Leveraging PCIe Gen5 host connectivity with up to 32 lanes, the MCX755106AS-HEAT delivers extreme throughput and ultra-low latency. It integrates NVIDIA's in-network computing engines, including SHARP collective offloads, GPUDirect RDMA, and GPUDirect Storage, to accelerate data movement and reduce CPU overhead. Built-in hardware security engines provide in-line encryption for IPsec, MACsec, and TLS, ensuring end-to-end data protection without performance penalty.
Key Features & Technology
Networking & Performance
- Up to 400 Gb/s total bandwidth
- InfiniBand: NDR 400Gb/s, HDR 200Gb/s, EDR 100Gb/s
- Ethernet: 400/200/100/50/25/10 Gb/s
- PCIe Gen5 host interface (up to x32 lanes)
- Dual-port QSFP112 connectors
- RDMA & RoCEv2 accelerations
- NVIDIA GPUDirect® RDMA and Storage
- In-network computing with SHARP™
- Adaptive routing & enhanced congestion control
- 16 million I/O channels
Security, Timing & Management
- In-line encryption: IPsec, MACsec, TLS (AES-GCM 128/256-bit)
- Platform security: Secure boot, flash encryption, device attestation (SPDM 1.1)
- Advanced PTP: IEEE 1588v2 Class C, 12ns accuracy
- SyncE (G.8262.1 eEEC), PTM, PPS, time-triggered scheduling
- ASAP² for SDN & VNF acceleration
- Overlay networks: VXLAN, GENEVE, NVGRE
- Connection tracking (L4 firewall), flow mirroring, QoS
- NC-SI, MCTP, PLDM (Monitor/Control, Firmware Update, Redfish, FRU)
- SR-IOV, VirtIO acceleration
Typical Deployments
- AI & machine learning clusters - GPU-accelerated training and inference
- High-performance computing (HPC) - research, simulation, and scientific workloads
- Hyperscale cloud data centers - scalable, multi-tenant infrastructure
- Enterprise data centers - virtualization, SDN, and storage acceleration
- Storage systems - NVMe-over-Fabrics, GPUDirect Storage, distributed file systems
- Telecommunications & edge - 5G core, timing-sensitive applications, NFV
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | MCX755106AS-HEAT |
| Supported network protocols | InfiniBand, Ethernet |
| Maximum total bandwidth | 400 Gb/s |
| InfiniBand speeds | NDR 400Gb/s, HDR 200Gb/s, EDR 100Gb/s |
| Ethernet speeds | 400/200/100/50/25/10 Gb/s |
| Number of network ports | 2 ports (dual-port QSFP112) |
| Host interface | PCIe Gen5 (up to x32 lanes) |
| Form factor | PCIe HHHL (half-height, half-length) |
| Interface technologies | NRZ (10G, 25G), PAM4 (50G, 100G) |
| I/O channels | 16 million |
| MTU / message size | 256 - 4,096 bytes MTU, 2 GB messages |
| Multi-Host support | Up to 4 hosts |
| In-network computing | SHARP collective offloads, rendezvous protocol offload, burst buffer offload |
| Security features | In-line IPsec/MACsec/TLS (AES-GCM 128/256), secure boot, flash encryption, SPDM 1.1 |
| Timing & synchronization | PTP IEEE 1588v2 Class C (12ns accuracy), SyncE G.8262.1 eEEC, PTM, PPS |
| Management | NC-SI, MCTP over SMBus/PCIe, PLDM (Monitor/Control, Firmware Update, Redfish, FRU), SPDM, SPI, JTAG |
| Remote boot | InfiniBand, iSCSI, UEFI, PXE |
| Operating systems | Linux (RHEL, Ubuntu), Windows, VMware ESXi, Kubernetes |
Key Advantages
- Unmatched performance - 400 Gb/s bandwidth with sub-microsecond latency
- Protocol flexibility - single adapter for InfiniBand and Ethernet (VPI)
- AI-optimized - GPUDirect RDMA and Storage, SHARP collective offloads
- Future-ready - PCIe Gen5 host interface for maximum data throughput
- Security built-in - in-line encryption with zero performance impact
- Precision timing - IEEE 1588v2 Class C for 5G and timing-sensitive applications
- Comprehensive management - PLDM, Redfish, and NC-SI for modern data center orchestration
