Cat 6A Patch Cord with 28AWG Stranded Copper and 2M Length for 500 MHz 10GbE Networking

Cat 6A Patch Cord with 28AWG Stranded Copper and 2M Length for 500 MHz 10GbE Networking

Thông tin chi tiết sản phẩm:

Hàng hiệu: Commscope
Số mô hình: PC-C6AU-LSB1-WH-2M
Tài liệu: PC-C6AU-LSB1-WH .pdf

Thanh toán:

Số lượng đặt hàng tối thiểu: 1 CÁI
Giá bán: Negotiate
chi tiết đóng gói: HỘP
Thời gian giao hàng: Dựa trên hàng tồn kho
Điều khoản thanh toán: T/T
Khả năng cung cấp: Cung cấp theo dự án/đợt
Giá tốt nhất Tiếp xúc

Thông tin chi tiết

Lớp ANSI/TIA: 6A Loại cáp: U/UTP (không được che chắn)
Loại dây dẫn: Dây điện cứng Giao diện, đầu nối A: phích cắm RJ45
Đặc điểm giao diện: Tiêu chuẩn đầu nối Một giao diện: phích cắm RJ45
Chiều dài: 2m
Làm nổi bật:

28AWG Cat 6A Patch Cord

,

2M Length Ethernet Cable

,

500 MHz Network Cable

Mô tả sản phẩm

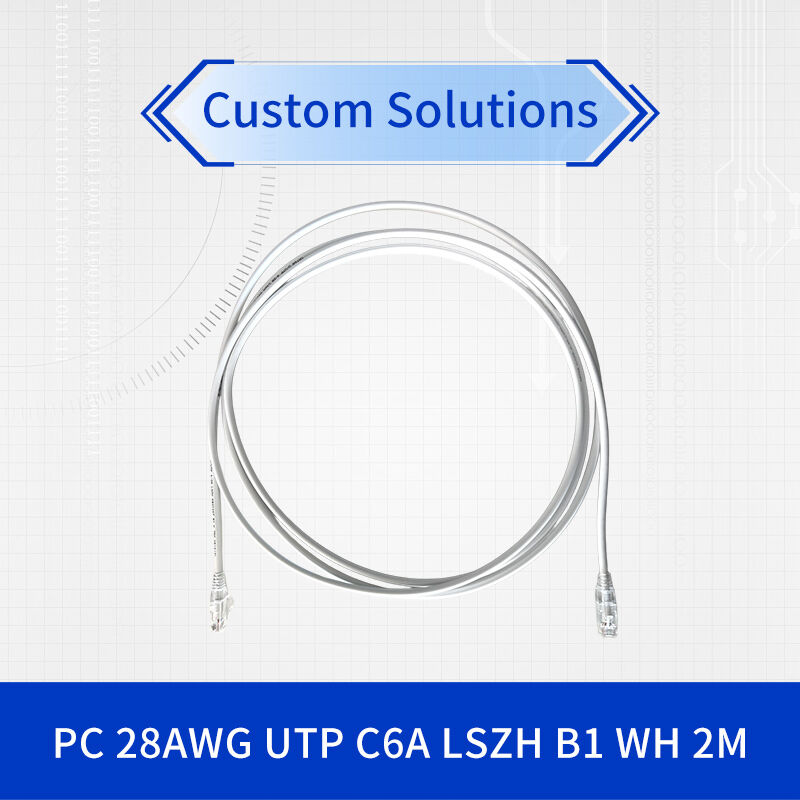

CommScope CAT6A 28AWG U/UTP LSZH Network Patch Cord

Next-Generation High-Density Connectivity for Demanding Network Environments

Ultra-Slim Profile

28AWG construction with 5.2mm diameter enables superior cable management and increased port density in crowded network

Advanced Network Connectivity Solution

The CommScope CAT6A 28AWG U/UTP LSZH patch cord represents a significant advancement in network infrastructure technology. This high-performance networking cable combines cutting-edge materials engineering with precision manufacturing to deliver exceptional reliability in the most demanding environments.

Designed for IT professionals and network engineers, this Ethernet cord provides the perfect balance of performance, safety, and space efficiency. The innovative 28AWG design allows for unprecedented density while maintaining full CAT6A transmission capabilities.

Technical Specifications

Parameter Specification Standard/Value
Performance Standards Transmission Category ANSI/TIA-568.2-D CAT6A, ISO/IEC 11801 Class EA
Physical Construction Conductor Specification 28AWG Stranded Copper, U/UTP Design

Cable Diameter 5.2mm Ultra-Slim Profile
Connector System Interface Type 8P8C RJ45, T568B Configuration

Durability Rating 750+ Insertion Cycles Minimum
Environmental Specs Operating Range -10°C to +60°C Temperature

Safety Compliance LSZH Jacket, GB/T 31247 B1

Application Environments

Muốn biết thêm chi tiết về sản phẩm này
Cat 6A Patch Cord with 28AWG Stranded Copper and 2M Length for 500 MHz 10GbE Networking bạn có thể gửi cho tôi thêm chi tiết như loại, kích thước, số lượng, chất liệu, v.v.

Chờ hồi âm của bạn.
