Network Management Switch Icx7550-24p Advanced Ruckus Switch
Thông tin chi tiết sản phẩm:
| Hàng hiệu: | RUCKUS |
| Model Number: | ICX7550-24P-E2-R3 |
Thanh toán:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T |
| Supply Ability: | 10000pcs/month |
|
Thông tin chi tiết |
|||
| Model NO.: | Icx7550-24p | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | 24 | Weight: | 6.11 Kg |
| Operating Temperature: | Operating: 0°c to 45°c | Power Supply: | 1123.7 W |
| Uplinks: | 40 Gbps Qsfp+ | Transport Package: | Carton |
| Specification: | 44cm*40.64cm*4.4cm | Trademark: | Ruckus |
| Origin: | China | ||
Mô tả sản phẩm

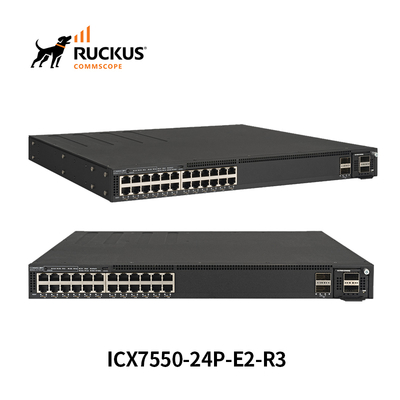

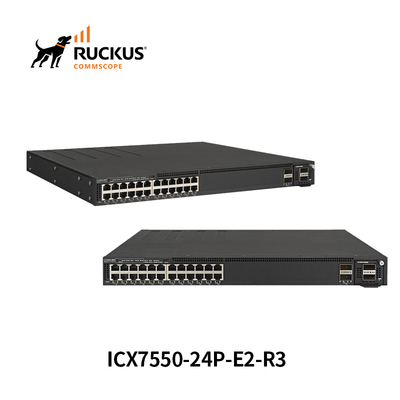

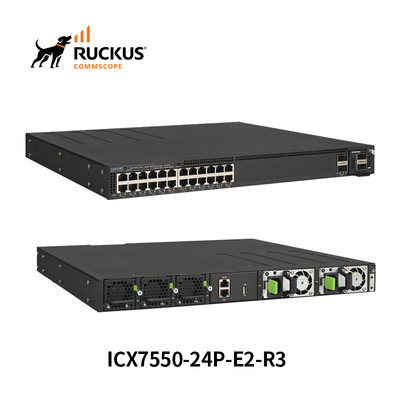

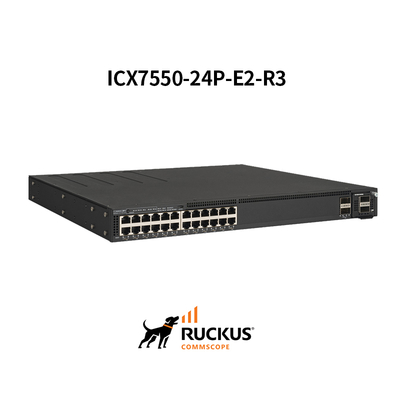

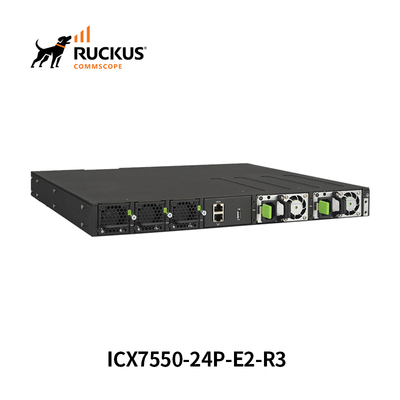

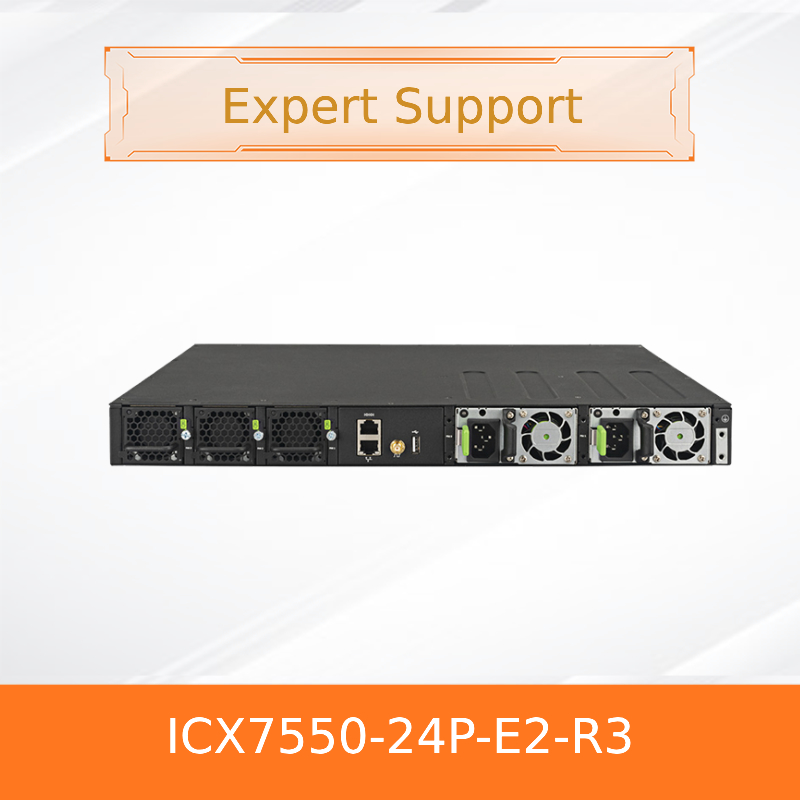

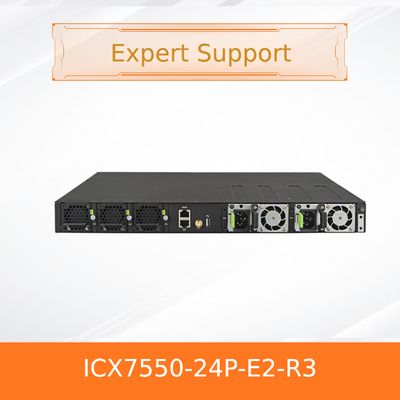

RUCKUS ICX 7550-24P
Mid-range enterprise-class stackable access/aggregation switch
Mid-range enterprise-class stackable access/aggregation switch
The CommScope RUCKUS ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond with up to 48 ports of multigigabit connectivity and full 90 watts of 802.3bt PoE power per port with perpetual and fast-boot PoE support. It offers market-leading stacking density with up to 12 switches (up to 576 gigabit, multigigabit or fiber ports) per stack and combines chassis-level performance with "pay as you grow" scalability of a stackable solution. The mid-market stackable switch is one of the first in its class to offer 100 GbE uplinks, enabling enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.
RUCKUS ICX 7550-24P 24-port 10/100/1000 Mbps 802.3at POE+, 2x 40Gbps QSFP+ dual-mode uplink/stacking ports, modular slot. Power
supplies, fans and port modules sold separately.
supplies, fans and port modules sold separately.
RUCKUS ICX 7550-24P | |
Switching capacity (data rate, full duplex) | 368 Gbps |
Forwarding capacity (data rate, full duplex) | 274 Mpps |
10/100/1000 Mbps RJ45 ports | 24 |
100/1000 Mbps/2.5 Gbps RJ45 ports (full duplex only) | - |
100/1000 Mbps/2.5/5/10 Gbps RJ45 downlinks (full duplex only) | - |
Fixed ports: 100/1000 Mbps SFP downlinks | - |
Fixed ports: 1/10 Gbps SFP/SFP+ downlinks | - |
Modular ports: 1/10 Gbps SFP/SFP+ uplinks | 4 |
40 Gbps QSFP+ uplinks (max) | 4 |
40/100 Gbps QSFP28 uplinks (max) | - |
PoE/PoE+ ports | 24 |
Perpetual/Fast boot PoE ports | 24 |
802.3bt (90W) ports | - |
Base IPv4/v6 L3 routing (Static routing, RIP) | y |
Advanced IPv4/v6 L3 routing (BGP, OSPF, RIP, VRRP, PIM, PBR features) | With license |
Aggregated Stacking Bandwidth | 960 Gbps |
Stacking density (Max switches in a stack) | 12 |
Stacking ports (Max ports usable for stacking) | Up to 2 x 40G QSFP+ |
Max stacking distance (between stacked switches) | 10 Km |
